How to Choose SF6 Handling Equipment Based on Gas Purity Requirements: A Technical Selection Guide
Understanding SF6 Purity Standards and Requirements
Purity Classification by Application
Different electrical applications demand specific SF6 purity levels. Selecting appropriate handling equipment begins with understanding these requirements:
- UHV/GIS Applications (≥99.9% purity): Equipment must achieve ≤1 ppmv moisture and ≤0.5 mg/m³ particulates
- HV Circuit Breakers (≥99.8% purity): Requires moisture content below 5 ppmv
- Medium Voltage Switchgear (≥99.5% purity): Tolerates moisture up to 15 ppmv
- Reused Gas (≥99.0% purity): Must meet IEC 60480 standards after processing
“After testing over 12,000 SF6 samples across Asian power networks, we found that equipment rated for 99.9% purity actually delivers 99.95-99.98% in optimal conditions, creating the safety margin necessary for UHV operations.”
— Dr. Tan Wei Ming, High-Voltage Laboratory Director, SIRIM QAS International
Critical Equipment Specifications for Gas Purity Management
1. Purification System Capabilities
Filtration Technology Selection:
- For ≥99.9% purity requirements: Select equipment with multi-stage filtration including:
- 0.01μm particulate filters for metallic contamination removal
- Molecular sieve beds (13X/4A) with dual-bed configuration for moisture removal
- Activated alumina chambers specifically designed for arc byproduct removal
- Automatic backflush capability to prevent filter saturation during operation
- For ≥99.8% purity requirements: Equipment should feature:
- 0.1μm final filtration stage
- Single-bed molecular sieve with moisture capacity rating ≥15g H₂O
- Acid gas absorption capability rated for 100+ operations
Purification Metrics to Verify:
| Purity Requirement |
Filter Precision |
Moisture Removal Capacity |
Processing Speed |
| ≥99.9% (UHV/GIS) |
0.01μm |
≤1 ppmv in single pass |
3-5 kg/hour |
| ≥99.8% (HV) |
0.1μm |
≤5 ppmv in single pass |
8-12 kg/hour |
| ≥99.5% (MV) |
1.0μm |
≤15 ppmv in single pass |
15-20 kg/hour |
2. Verification and Monitoring Systems
Essential Testing Capabilities:
- Integrated moisture analyzers with chilled mirror technology (±0.1°C accuracy)
- Infrared spectrometry for purity verification with NIST-traceable calibration
- Particulate counters with laser scattering technology for contamination monitoring
- Data logging systems that record purity measurements before/after processing
Equipment lacking real-time verification capabilities requires external testing, introducing contamination risks during transfer between systems.
Technical Selection Framework by Application
For UHV and Critical GIS Applications (≥99.9% Purity)
Required Equipment Specifications:
- Triple-redundant verification systems with voting logic
- Automatic rejection protocols that isolate contaminated gas fractions
- Climate-controlled processing environment (20-25°C, 40% RH)
- Processing capacity matched to GIS compartment volumes (typically 150-250 kg/hour)
- IEC 62271-4 compliant documentation systems
Recommended Configuration:
1.Primary Stage: 0.01μm filtration + dual molecular sieve beds
2.econdary Stage: Cryogenic separation (-60°C) + membrane technology
3.Verification: Dual IR spectrometry + gas chromatography sampling port
4.Data Management: Blockchain-verified digital certificates with tamper-proof logs
For Standard Transmission Applications (≥99.8% Purity)
Required Equipment Specifications:
- Dual verification systems with cross-validation capability
- Automated filter change indicators with usage tracking
- Built-in moisture analyzer with calibration verification function
- Processing capacity of 80-150 kg/hour
- IEC 60480 compliance reporting
Recommended Configuration:
1.Primary Stage: 0.1μm filtration + single molecular sieve bed
2.Secondary Stage: Activated alumina chamber + moisture trap
3.Verification: Single IR spectrometer + manual sampling port
4.Data Management: Digital logging with 24-month retention
For Distribution Applications (≥99.5% Purity)
Required Equipment Specifications:
- Single verification system with calibration check capability
- Visual filter saturation indicators
- Integrated hygrometer with ±1°C accuracy
- Processing capacity of 30-60 kg/hour
- Basic compliance documentation
Recommended Configuration:
1.Primary Stage: 1.0μm filtration + combined sieve/alumina chamber
2.Verification: Electronic moisture sensor + purity indicator
3.Data Management: Paper-based logging system with digital backup option
Testing Protocol Before Equipment Selection
Verification Testing Requirements
Before finalizing any
SF6 handling equipment purchase, conduct these critical tests:
- Challenge Test: Process contaminated SF6 (deliberately contaminated to 98% purity) and verify output meets specifications
- Continuous Operation Test: Process 5× the rated daily capacity to verify filter longevity
- Environmental Stress Test: Validate performance at temperature extremes (-10°C to +45°C)
- Cross-Contamination Test: Process mixed-gas samples to verify separation efficiency
- Verification Accuracy Test: Compare equipment readings against certified laboratory measurements
Total Cost of Ownership Considerations
Equipment Selection Impact on Long-Term Costs:
| Cost Factor |
Premium Equipment (≥99.9%) |
Standard Equipment (≥99.8%) |
Budget Equipment (≥99.5%) |
| Initial Investment |
High (1.8-2.2× standard) |
Medium (baseline) |
Low (0.5-0.7× standard) |
| Gas Replacement Costs |
Minimal (≤2% annual) |
Moderate (5-8% annual) |
High (12-15% annual) |
| Equipment Downtime Risk |
Very Low (<0.1%) |
Low (0.5-1.0%) |
High (3-5%) |
| Regulatory Compliance Risk |
Minimal |
Moderate |
Significant |
| Residual Value (5 years) |
65-70% |
40-45% |
15-20% |
Implementation Checklist: Selecting the Right Equipment
- Define purity requirements based on equipment specifications and operating conditions
- Verify manufacturer certifications (ISO 9001, ISO 14001, IEC 62271-4 compliance)
- Request third-party validation reports from independent testing laboratories
- Confirm spare parts availability with local service center within 24-hour response radius
- Evaluate training programs for operations staff on purity maintenance procedures
- Review data management capabilities for regulatory compliance and trend analysis
- Test equipment with actual site conditions before final purchase commitment
Emerging Technologies and Future-Proofing
- AI-driven predictive maintenance that anticipates filter saturation before purity degradation
- Blockchain verification systems providing immutable gas quality documentation
- Hybrid processing capabilities compatible with SF6 alternative gases (g³, AirPlus, etc.)
- Cloud-connected monitoring enabling remote expert support during critical operations
- Modular upgrade paths allowing purity enhancement as standards tighten
Conclusion: Making the Right Choice
Selecting
SF6 handling equipment based on gas purity requirements demands technical understanding beyond marketing specifications. The right equipment balances precision engineering with practical operational needs while meeting current and future regulatory requirements.
For critical UHV and GIS applications, invest in equipment exceeding minimum purity requirements to create necessary safety margins. For distribution applications, focus on reliability and ease of use while maintaining adequate purity standards. Always validate manufacturer claims through independent testing under actual operating conditions before making final equipment selections.
Remember that the total cost of ownership, including gas replacement costs, regulatory compliance risks, and equipment downtime impacts, often makes premium purity-focused equipment the more economical choice despite higher initial investment. The most advanced SF6 handling equipment doesn’t just process gas—it guarantees performance, ensures compliance, and protects grid reliability through precision purity management.
Yes, advanced SF6 analyzers are capable of detecting key decomposition products such as sulfur dioxide (SO₂), hydrogen sulfide (H₂S), and carbon monoxide (CO). These gases form when SF6 decomposes under electrical arcing or overheating conditions. Detecting them helps assess insulation health, identify internal faults, and ensure personnel safety during maintenance of high-voltage equipment.
The humidity (dew point) measurement accuracy in high-quality SF6 gas analyzers typically ranges from ±0.5°C to ±1.0°C dew point under standard operating conditions. Some advanced models using chilled mirror or capacitive polymer sensors may achieve even higher precision. Accuracy can be influenced by factors such as gas pressure, temperature stability, and sensor calibration. Reliable dew point measurement is critical for assessing insulation performance and preventing condensation-related failures in high-voltage equipment.

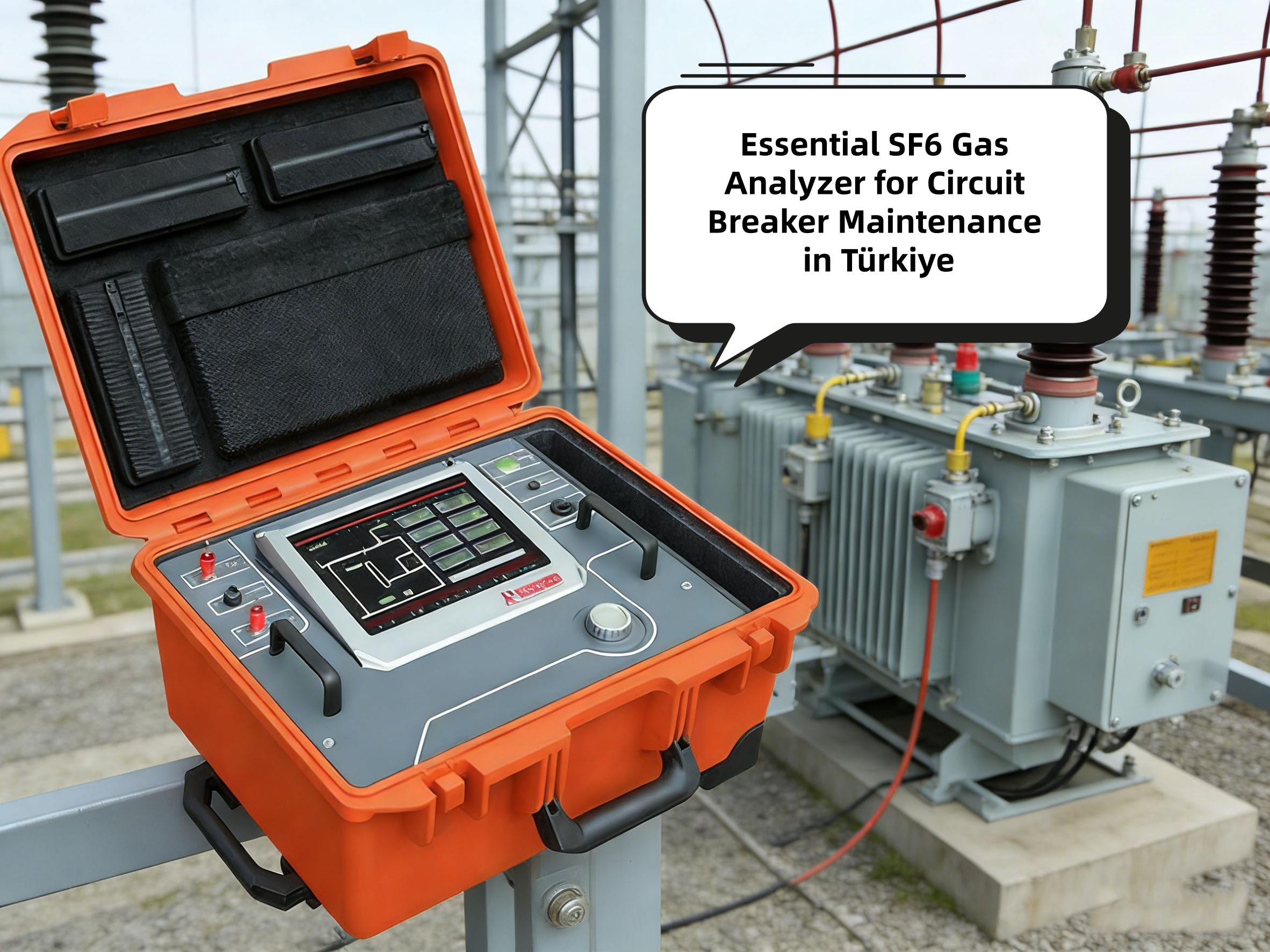

Yes, most SF6 gas analyzers are designed to be portable and field-ready, featuring compact, rugged enclosures—often in pull-handle trolley cases with wheels—for easy transport. They are battery-powered, operate in a wide temperature range, and function reliably in substation environments. Their lightweight design and integrated handles make them suitable for on-site testing of GIS, circuit breakers, and other high-voltage equipment without requiring lab conditions.
Many professional-grade SF6 gas analyzers are designed to comply with key international standards such as IEC 60480 (guidelines for reusing SF6) and IEEE C37.122 (requirements for gas-insulated substations). Compliance ensures accurate measurement of gas quality, safe handling, and alignment with industry best practices for maintenance and emissions control. However, compliance varies by model and manufacturer, so users should verify certification documentation before purchase.
