Across Europe and North America, utilities and industrial operators depend on sulfur hexafluoride (SF6) to insulate critical high-voltage equipment—from gas-insulated switchgear (GIS) and circuit breakers to power transformers. SF6 offers unmatched dielectric strength and arc-quenching performance, but only when it’s dry and pure. Even small amounts of moisture or air contamination can weaken insulation, accelerate internal corrosion, and lead to unexpected outages or safety hazards.

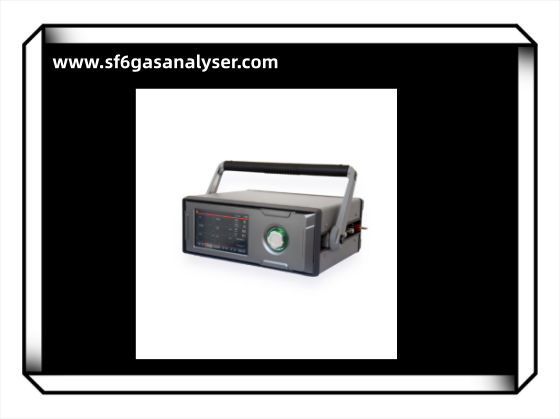

That’s why professionals in the field increasingly rely on a trusted diagnostic instrument: the SF6 dew point and purity meter. This compact, field-ready device delivers fast, accurate measurements of two vital parameters—moisture (expressed as dew point) and SF6 concentration—right at the substation. It’s not just about convenience; it’s about making informed decisions that protect assets, ensure regulatory compliance, and support environmental responsibility.

Why Dew Point and Purity Matter—Every Time

International standards like IEC 60480 and IEC 62271-4, widely adopted in both the EU and U.S., set clear limits for acceptable SF6 quality:

• Dew point: Should correspond to less than 200 ppmv of moisture (often under 100 ppmv for new installations). Excess moisture lowers dielectric strength, risks ice formation in colder climates, and—when combined with arc byproducts—forms corrosive acids that damage internal components.
• Purity: Must typically exceed 95–98% SF6. Lower values suggest air ingress, leaks, or improper handling, all of which compromise performance and may indicate developing faults.

Without on-site verification, teams risk commissioning compromised equipment or unnecessarily replacing gas that could be safely reused. An SF6 dew point and purity meter removes the guesswork with real-time, reliable data—on the spot.

What Sets a Professional-Grade Meter Apart

Not all handheld testers are created equal. A true SF6 dew point and purity meter built for utility use includes:

• Precision dew point sensing: Using either chilled mirror (the gold standard) or high-stability capacitive polymer technology, capable of measuring down to –60°C dew point (≈1 ppmv moisture), with automatic temperature and pressure compensation.
• Accurate purity detection: Via thermal conductivity or NDIR (infrared) sensors that detect air contamination as low as 1–2%, ensuring gas meets OEM and regulatory specs.
• Field-ready design: Rugged IP54+ housing, long-life battery (6–8 hours), intuitive touchscreen, and minimal gas draw (<100 mL per test) to avoid impacting system pressure.
• Digital reporting: Automatically generates timestamped, GPS-tagged reports in PDF or CSV—fully aligned with U.S. EPA GHG reporting rules, the EU F-Gas Regulation, and enterprise systems like SAP or IBM Maximo.

These features ensure every reading is trustworthy, repeatable, and ready for audit.

Real-World Impact: From Prevention to Cost Savings

In practice, the value is clear. A U.S. transmission utility integrated SF6 dew point and purity meters into its maintenance program and saw:

• A 38% reduction in GIS-related outages over three years
• Zero non-conformities in EPA compliance reviews
• Annual savings of 15,000–25,000 per bay by reusing verified-clean gas

Meanwhile, a European grid operator avoided €90,000 in potential F-Gas fines by providing digital proof of compliant handling during an inspection. These results reflect real-world experience and technical expertise—not just theory.

Trusted Models Used Across Europe and North America

Leading SF6 dew point and purity meters include:

• CE-certified and widely accepted by Siemens, Hitachi Energy, and GE for warranty-compliant servicing.
• Features NDIR purity sensing, Bluetooth connectivity, and cloud-ready data export—popular in both EU and U.S. markets.
• Uses chilled mirror technology with PTB-traceable calibration; a benchmark for metrological accuracy in Europe.

All comply with IEC standards, use SF6-compatible materials (stainless steel, Viton), and come with full documentation—ensuring authority and credibility with regulators and OEMs alike.

Avoid uncertified “budget” units—they often lack traceable calibration or proper material compatibility, risking false readings and compliance gaps.

Best Practices for Reliable Results

To uphold high standards of professionalism:

1. Purge sampling lines before each test to flush residual gas.
2. Use OEM-approved connectors (e.g., DILO or CGA) for leak-free connections.
3. Calibrate annually using NIST (U.S.) or PTB (EU) traceable standards.
4. Record baseline values at commissioning for future trend analysis.
5. Train technicians to interpret results—not just operate the device.

Expertise turns data into actionable insight.

Meeting Environmental and Regulatory Expectations

With SF6 having a global warming potential 23,500 times that of CO₂, both the U.S. EPA and EU F-Gas Regulation require strict tracking of gas quality and handling. An SF6 dew point and purity meter provides the auditable evidence needed to demonstrate due diligence—while supporting ESG goals through responsible gas reuse and emission reduction.

Final Word: Precision You Can Count On

In today’s energy landscape—where reliability, sustainability, and compliance go hand in hand—the SF6 dew point and purity meter is more than a tool. It’s a mark of professional rigor. Compact, certified, and proven in the field, it gives operators the confidence to maintain grid integrity while meeting the expectations of regulators, stakeholders, and the public.

For anyone managing SF6-insulated infrastructure in Europe or North America, this meter isn’t optional. It’s essential.
