For transmission utilities, industrial plants, and EPC contractors managing high-voltage infrastructure, gas quality is non-negotiable. Contaminated or moist SF6 can compromise insulation, trigger internal arcing, and violate strict environmental regulations. That’s why the handheld SF6 purity and moisture analyzer has become a mission-critical tool—delivering lab-grade accuracy in a portable, battery-powered format.

Backed by field data and aligned with global standards, this article explains why these devices matter, how they work, and what to look for when selecting one.

How It Works: Proven Sensing Technologies for Field Use

Modern handheld SF6 purity and moisture analyzers rely on two industry-standard principles:

• SF6 Purity – Thermal Conductivity (TCD)
  SF6 has significantly lower thermal conductivity than air or CF₄. A TCD sensor measures this difference to calculate SF6 concentration by volume—fast, without consumables, and ideal for portable design.
• Moisture (Dew Point) – Capacitive Polymer Sensor
  A hygroscopic polymer layer changes its dielectric properties as it absorbs water vapor. The resulting impedance shift correlates to dew point temperature (°C dp). While not as precise as chilled-mirror systems, today’s sensors achieve ±2°C accuracy—sufficient for IEC-compliant field decisions.

Key Performance Specs: Meeting Utility & Regulatory Demands

Top-tier handheld SF6 analyzers meet these verified specifications:

These tolerances support compliance with:

• IEC 60480: Reuse criteria for recovered SF6
• IEEE C37.122.3: Gas quality in GIS
• EU F-Gas Regulation & U.S. EPA Subpart DD: Emissions tracking

Example thresholds:

• Purity ≥ 97%: Generally acceptable for reuse
• Dew point ≤ –5°C (~150 ppmv H₂O): Common GIS manufacturer limit

Field Insight: A 2024 ENTSO-E maintenance report found that 82% of European TSOs now require on-site purity and moisture verification before refilling GIS—eliminating guesswork and reducing gas waste.

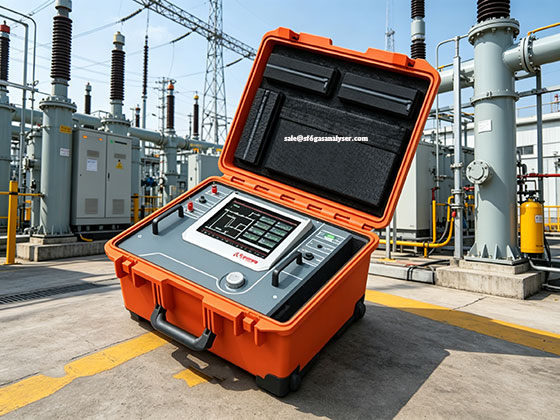

Why Handheld? Operational Efficiency Meets Safety

Compared to lab testing or fixed systems, handheld SF6 purity and moisture analyzers deliver:

• 3–5 minute results at the equipment bay—no downtime waiting for reports
• Battery operation (4–8 hrs) and weight under 3 kg for single-person use
• Digital logging with timestamp, GPS, and exportable PDF/CSV files for audit trails

This is invaluable during outage windows, remote substation visits, or emergency diagnostics where speed and autonomy are critical.

Real Applications Across the Asset Lifecycle

• Pre-commissioning: Verify new SF6 meets ≥99.9% purity
• Preventive maintenance: Detect moisture ingress or decomposition byproducts
• Post-recovery assessment: Determine if gas qualifies for direct reuse per IEC 60480
• Regulatory reporting: Document gas quality for ESG, carbon accounting, or F-Gas logs

One U.S. investor-owned utility reported $220K annual savings in virgin SF6 purchases after deploying handheld SF6 gas analyzers across its 500 kV network.

What to Look for: Ensuring Accuracy & Long-Term Value

Choose a SF6 purity and moisture analyzer that offers:

• NIST- or PTB-traceable calibration certificate
• Automatic temperature/pressure compensation
• IP54+ enclosure for dust and moisture resistance
• Optional ATEX/IECEx certification for Zone 2 hazardous areas (e.g., petrochemical sites)

Final Takeaway

The handheld SF6 purity and moisture analyzer isn’t just convenient—it’s a strategic investment in grid reliability, operational efficiency, and environmental compliance. With tightening global SF6 regulations and rising expectations for zero-emission maintenance, accurate, on-the-spot gas testing is no longer optional.

Equip your team with the right tool—and turn gas quality from a risk into a controlled variable.
