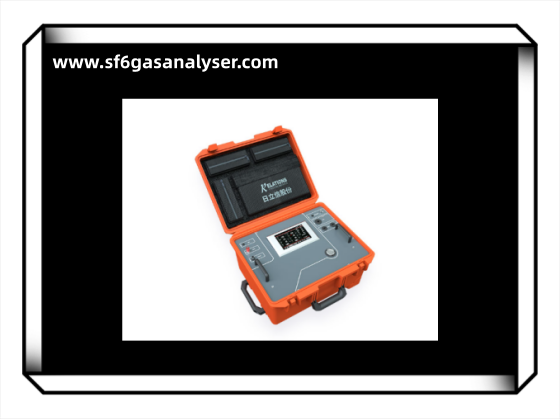

In today’s high-voltage power systems—where reliability, regulatory compliance, and environmental stewardship intersect—the quality of sulfur hexafluoride (SF₆) gas is non-negotiable. Used extensively in gas-insulated switchgear (GIS), circuit breakers, and transformers, SF₆ must maintain strict thresholds for moisture (water content), gas purity, and decomposition byproducts to ensure safe and efficient operation. Enter the 3-in-1 SF6 gas analyzer for testing water content, purity, and decomposition—a compact, field-deployable instrument that delivers laboratory-grade diagnostics in minutes, directly at the substation.

Unlike legacy tools that measure only one or two parameters, the modern 3-in-1 SF6 gas analyzer integrates three critical analytical functions into a single, rugged platform. This convergence of capabilities not only streamlines workflows but also ensures comprehensive compliance with international standards such as IEC 60480 (reuse specifications) and IEC 62271-4 (handling procedures). For utilities, EPC contractors, and grid operators, this device has become indispensable for commissioning, maintenance, and sustainability programs.

Why All Three Parameters Matter

Each of the three measured parameters reveals vital insights into SF₆ condition and equipment health:

1. Water Content (Moisture)
   Excess moisture reacts with arc-generated byproducts to form hydrofluoric acid (HF)—a highly corrosive compound that degrades contacts, insulators, and seals. IEC 60480 limits moisture to ≤20 ppmv (or dew point ≤ –25°C) for GIS. Real-time dew point measurement prevents long-term damage before it begins.
2. Gas Purity
   Dilution with air (N₂/O₂) or other gases reduces dielectric strength, increasing the risk of flashovers. A purity level below 99.8% often indicates leaks or improper filling. Accurate purity assessment ensures the gas performs as engineered.
3. Decomposition Byproducts (SO₂, HF, H₂S, etc.)
   Arcing or partial discharge breaks down SF₆ into toxic and corrosive compounds like sulfur dioxide (SO₂) and hydrogen fluoride (HF). Even trace amounts (e.g., >2 ppmv SO₂) signal internal faults requiring immediate investigation.

Measuring just one or two of these parameters creates blind spots. Only a true 3-in-1 SF6 gas analyzer for testing water content, purity, and decomposition provides a complete diagnostic picture.

How the 3-in-1 Analyzer Works: Integrated Sensing Technology

Advanced 3-in-1 SF6 gas analyzers combine multiple sensing technologies in a closed, oil-free sampling loop:

• Capacitive Polymer Sensor: Measures dew point with ±1°C accuracy down to –60°C, enabling precise moisture calculation in ppmv.
• Thermal Conductivity Detector (TCD): Determines SF₆ concentration by comparing thermal properties against reference gas—detecting air contamination as low as 0.1%.
• Electrochemical or NDIR Sensors: Quantify SO₂, HF, and optionally CO or H₂S with resolutions as fine as 0.1 ppmv.

The entire analysis cycle takes 5–10 minutes, with results displayed on a color touchscreen and automatically logged with timestamp, GPS, and operator ID. Many models support Bluetooth or Wi-Fi for cloud upload to asset management systems.

Compliance with IEC 60480 and IEC 62271-4

Regulatory frameworks demand more than data—they require traceability and documentation. The 3-in-1 SF6 gas analyzer for testing water content, purity, and decomposition is explicitly designed to meet this need:

• It verifies that reclaimed SF₆ meets IEC 60480 limits before reuse (e.g., SO₂ ≤ 2 ppmv, H₂O ≤ 20 ppmv).
• It supports IEC 62271-4 requirements for gas quality verification during filling or maintenance.
• It generates PDF or CSV reports compliant with EU F-Gas Regulation and EPA GHG reporting rules.

This eliminates guesswork and provides auditable proof of due diligence—critical during inspections or warranty claims.

Operational Benefits Across the Asset Lifecycle

Commissioning New Equipment

Confirms factory-filled gas hasn’t absorbed moisture during shipping or installation—preventing premature failures.

Routine Preventive Maintenance

Detects slow moisture ingress or early decomposition trends before they escalate, enabling predictive interventions.

Post-Fault Analysis

After a breaker trip or internal arc, elevated SO₂ or HF levels guide decisions on gas replacement vs. internal inspection.

SF₆ Recycling Validation

Ensures purified gas from mobile reclaimers meets reuse standards—supporting circular economy goals and cost savings.

Field teams report 30–50% faster diagnostics compared to using separate instruments, with significantly reduced human error.

Key Features to Look For

Not all “3-in-1” SF6 analyzers deliver equal performance. When selecting a unit, prioritize:

✅ True simultaneous measurement (not sequential switching)
✅ IEC 60480-aligned detection limits (e.g., SO₂ resolution ≤0.1 ppmv)
✅ Automatic pressure and temperature compensation
✅ Self-sealing, DILO-compatible inlet to prevent emissions
✅ Battery life >6 hours for remote substations
✅ Calibration traceability to NIST or PTB standards

Leading manufacturers offer certified 3-in-1 analyzers that meet these criteria—backed by global service networks.

Environmental and Economic Impact

With SF6 costing 40–70 per kg and subject to carbon taxes in many regions, avoiding unnecessary venting and virgin gas purchases delivers direct ROI. More importantly, preventing equipment failure avoids outages that can cost hundreds of thousands per hour in lost revenue or penalties.

By enabling safe reuse and early fault detection, the 3-in-1 SF6 gas analyzer for testing water content, purity, and decomposition turns gas management from a compliance burden into a strategic advantage.

Conclusion: One Device, Three Critical Safeguards

In an era of aging infrastructure, tightening regulations, and net-zero commitments, precision gas analysis is no longer optional—it’s foundational. The 3-in-1 SF6 gas analyzer for testing water content, purity, and decomposition empowers engineers to act with confidence, protect assets, and uphold environmental responsibility—all from a single, portable instrument.

For any organization managing SF6-insulated equipment, this technology isn’t just convenient. It’s essential.
