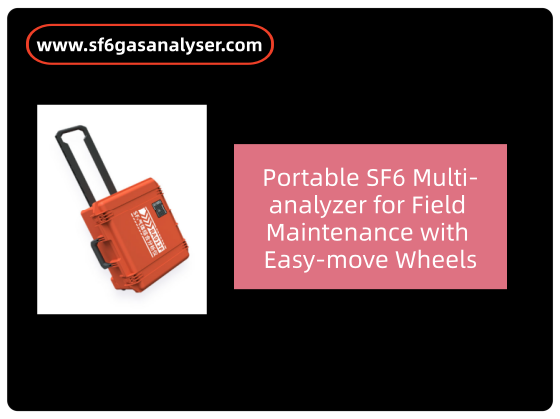

For utility technicians, substation engineers, and high-voltage maintenance teams, time, accuracy, and mobility are non-negotiable. When servicing gas-insulated switchgear (GIS) or circuit breakers in the field, lugging heavy, fragmented test equipment across uneven terrain or confined substations slows operations and increases fatigue. That’s why the Portable
SF6 Multi-analyzer for Field Maintenance with Easy-move Wheels has become a game-changer—combining lab-grade gas analysis with true on-site agility.
Designed for rapid deployment and reliable performance, this all-in-one SF6 gas analyzer delivers real-time measurement of SF6 purity, moisture, and critical decomposition byproducts (SO₂, H₂S, CO)—all while rolling effortlessly to your next test point.
Why Mobility Matters in Field-Based SF6 Testing
Field maintenance often involves:
- Multiple GIS bays across large substations
- Remote rural switchyards with limited vehicle access
- Offshore platforms or industrial plants with tight corridors
Traditional SF6 analyzers—bulky, static, or requiring separate carts—create logistical bottlenecks. In contrast, a
portable SF6 multi-analyzer with easy-move wheels features:
- Industrial-grade swivel casters with lockable brakes for smooth transit over gravel, grating, or concrete
- Ergonomic telescopic handle (like airline luggage) for one-person maneuverability
- Compact footprint (<50 cm wide) to navigate narrow switchgear aisles
This design isn’t just convenient—it directly reduces setup time and physical strain, enabling faster diagnostics and safer workflows.
Core Technical Advantages: Lab Accuracy, Field Toughness
Despite its mobility, this SF6 gas analyzer doesn’t compromise on performance. Built to IEC 60480 and IEC 62271-1 standards, it offers:
✅ Multi-Parameter Analysis in <3 Minutes
- SF₆ Purity: 0–100% (±0.5%) via NDIR sensor
- Moisture (H₂O): 1–1000 ppmv; dew point from –60°C to +20°C
- Decomposition Gases:
- SO₂: 0–20 ppm (0.1 ppm resolution)
- H₂S: 0–10 ppm
- CO: 0–500 ppm
✅ Closed Sampling System
Prevents ambient air ingress during testing—ensuring moisture and purity readings reflect true GIS conditions.
✅ Ruggedized for Harsh Environments
- IP54-rated enclosure (dust and splash resistant)
- Operating temperature: –10°C to +50°C (ideal for UK/EU field conditions)
- Shock-absorbing corners and reinforced handles
✅ Smart Data Management
- 7-inch color touchscreen with intuitive UI
- Auto-save measurements with timestamp, GPS, and operator ID
- Export reports via USB, Wi-Fi, or Bluetooth for compliance logging
Key Field Scenarios: Where Speed and Mobility Deliver Value
1. Emergency Fault Response
After a GIS trip, crews roll the analyzer directly to the bay, connect via standard DILO fittings, and get full gas composition in minutes. Elevated SO₂ (>2 ppm) confirms internal arcing—guiding repair decisions without delay.
2. Routine Preventive Maintenance Rounds
Technicians can test 10+ GIS compartments in a single shift. The easy-move wheels eliminate the need for trolleys or second personnel, cutting labor costs and improving schedule adherence.
3. Commissioning New Switchgear
On construction sites with unfinished surfaces, the wheeled design allows smooth transport from van to switchroom—even over mud or temporary flooring—while validating factory-filled SF₆ quality before energization.
4. Offshore or Industrial Plants
In environments where lifting equipment is restricted, the analyzer’s lightweight chassis (<18 kg) and wheels enable safe manual handling through hatches and stairwells.
Technical Specifications at a Glance
| Feature |
Specification |
| Dimensions |
480 × 380 × 290 mm (with handle retracted) |
| Weight |
16.5 kg (including battery) |
| Wheels |
2 x 100mm swivel casters + 2 fixed wheels, lockable |
| Power |
Rechargeable Li-ion battery (5 hrs) or 100–240V AC |
| Sensors |
NDIR (SF₆), capacitive polymer (moisture), electrochemical (SO₂/H₂S/CO) |
| Certifications |
CE, UKCA, RoHS, IEC 61010-1 |
All units include a calibration certificate traceable to international standards and come with a 2-year warranty—backed by local UK/EU service centers.
Why This Isn’t Just “Another Analyzer”
The
Portable SF6 Multi-analyzer for Field Maintenance with Easy-move Wheels represents a shift from testing tools to operational enablers. It merges three traditionally separate functions—purity, moisture, and decomposition analysis—into a single mobile platform that respects the realities of field work: uneven ground, tight schedules, and zero tolerance for error.
By eliminating device swapping, manual logging, and cumbersome transport, it reduces human error, accelerates decision-making, and supports compliance with F-gas regulations and ISO 14064 reporting.
Final Thoughts: Move Faster, Measure Smarter
In today’s high-pressure maintenance environment, efficiency isn’t optional—it’s essential. With its unique combination of precision gas analysis, rugged portability, and user-centric design, this wheeled SF6 multi-analyzer empowers field teams to do more, safer, and faster.
Upgrade your fleet. Roll in reliability.
Available now across the UK and EU with next-day dispatch, on-site training, and certified calibration support.
