As global demand for reliable, compact power infrastructure grows, gas-insulated switchgear (GIS) has become the standard in new substation installations—especially in urban, offshore, and space-constrained environments. Central to GIS performance is sulfur hexafluoride (SF₆), a high-dielectric gas that ensures safe and efficient operation. However, during commissioning, even minor contamination or improper handling can compromise system integrity.

This is where the Pump Back SF6 Gas Analyzer during new substation installation plays a transformative role. Unlike conventional analyzers that vent or waste test gas, this advanced instrument not only measures SF₆ purity, moisture, and key decomposition byproducts (SO₂, CO, H₂S)—it also recovers and re-injects the sampled gas, achieving true zero-emission, zero-loss testing. For utilities and EPC contractors committed to sustainability, compliance, and operational excellence, it’s becoming an indispensable tool.

Why Gas Quality Verification Is Critical at Commissioning

New GIS units are factory-filled with high-purity SF₆, but transport, on-site assembly, or valve connections can introduce air, moisture, or particulates. According to IEC 62271-1 and IEEE C37.122.3, SF₆ used in high-voltage equipment must meet strict thresholds:

• Purity ≥ 99.9%
• Dew point ≤ –5°C (at 0.1 MPa)
• SO₂ < 2 µL/L (indicating no internal arcing)

Without verification, energizing contaminated equipment risks partial discharge, insulation failure, or costly delays. Traditional “open-loop” testers release the sample gas into the atmosphere—a practice increasingly restricted under EPA GHG reporting rules and the EU F-Gas Regulation due to SF₆’s extreme global warming potential (GWP = 23,500).

The Pump Back SF6 Gas Analyzer during new substation installation solves both problems: it delivers precise diagnostics and eliminates emissions.

How the Pump-Back System Works

This integrated SF6 analyzer uses a closed-loop sampling process:

1. A small volume of gas is extracted from the GIS compartment
2. Onboard sensors instantly measure purity (thermal conductivity), dew point (capacitive sensor), and decomposition gases (electrochemical cells for SO₂, CO, H₂S)
3. Instead of venting, the gas is either:
   • Re-injected directly back into the same chamber, or
   • Stored in an external buffer tank for later reuse

This “pump-back” capability ensures 100% gas recovery, aligning with circular economy principles and reducing the need for costly virgin SF₆ top-ups.

Key Features Designed for Field Efficiency

Engineered for real-world commissioning teams, the analyzer includes:

• One-Touch Auto Measurement: Initiates full diagnostic sequence and locks results—minimizing human error
• Expert Diagnostic Engine: Compares readings against user-selected standards (e.g., IEC 60480, DL/T 596) and flags out-of-spec values with actionable alerts
• Modular Design: Sensors and pumps can be serviced or replaced on-site—maximizing uptime and reducing lifecycle costs
• 10,000-Point Data Storage: Logs include timestamp, location ID, and measurement conditions; data exports via USB in CSV or utility-specific formats

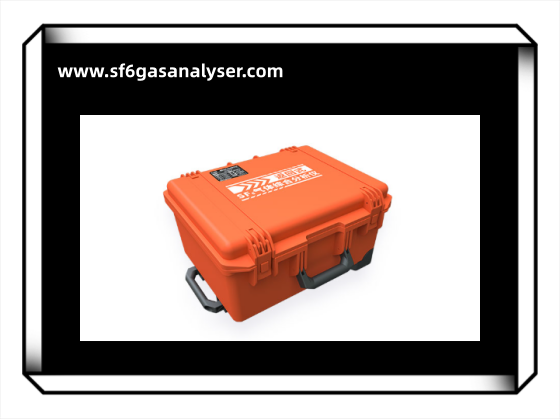

• Rolling Suitcase Form Factor: Built-in handle and rugged wheels enable easy transport across large substation sites—even in muddy or uneven terrain

Environmental and Economic Impact

During a typical 400 kV GIS substation commissioning, 5–10 gas quality checks may be required. With conventional testers, this could vent hundreds of grams of SF₆—equivalent to ~10+ tons of CO₂e.

By contrast, the Pump Back SF6 Gas Analyzer during new substation installation:

• Prevents all test-related emissions
• Reduces SF₆ procurement costs (gas prices range 25–60/kg)
• Supports ESG reporting and regulatory compliance (EPA Subpart DD, EU F-Gas)
• Enhances project sustainability credentials—increasingly required in public tenders

For example, a European grid operator recently mandated pump-back analyzers on all new GIS projects, citing a 95% reduction in commissioning-phase SF₆ losses.

Conclusion: The Future of Green Commissioning

As decarbonization pressures mount and regulations tighten, the era of venting SF₆ during testing is ending. The Pump Back SF6 Gas Analyzer during new substation installation represents a smarter, cleaner, and more responsible approach to high-voltage commissioning.

It delivers the accuracy engineers demand, the compliance officers require, and the planet deserves—all without sacrificing speed or convenience. For any organization building the grid of tomorrow, it’s not just a tool. It’s a statement of commitment to zero-waste infrastructure.
