The integrity of high-voltage electrical infrastructure depends on a single, critical variable: the quality of Sulfur Hexafluoride (SF6) gas. In the demanding environments of power substations, railway traction stations, and petrochemical plants, technicians require a diagnostic tool that is not only laboratory-accurate but also optimized for the rigors of remote operations.

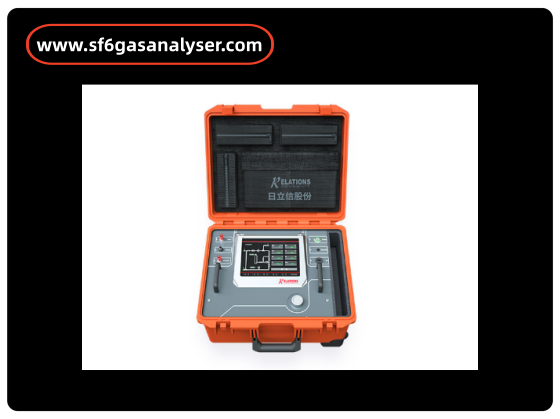

The emergence of the low power consumption SF6 gas analyzer for field work marks a significant milestone in maintenance technology. By integrating high-precision sensing with intelligent power management and automated data handling, this instrument ensures that on-the-go testing is as reliable as fixed-laboratory analysis.

1. The Necessity of Multi-Parameter SF6 Analysis

SF6 gas is prized for its dielectric strength, but its performance is compromised by three primary factors: moisture (humidity), loss of purity, and the presence of toxic decomposition products.

Purity Degradation: Air or nitrogen ingress lowers the insulation threshold. Micro-water (Humidity): Moisture reacts with arcing byproducts to form corrosive acids that etch insulators. Decomposition Products (SO2, H2S, CO): These chemical signatures indicate internal faults, such as partial discharge or overheating.

A low power consumption SF6 gas analyzer for field work allows technicians to assess all these parameters—Purity, Humidity, and Decomposition Products—simultaneously, without the need for multiple bulky instruments or frequent recharging.

2. Intelligent Features Optimized for Remote Maintenance

Modern field work requires more than just raw data; it requires actionable intelligence and workflow efficiency. This analyzer is designed with several smart features that address the pain points of substation maintenance.

A. Automated ID Identification and Data Synchronization One of the most common errors in field testing is the mismatching of data with specific equipment. This analyzer features an ID automatic identification and entry function. By linking measurement data directly to the specific asset (via RFID or QR scanning), it eliminates manual entry errors and ensures a seamless handshake between the field device and the central management system.

B. Self-Regulating Flow and Pressure Monitoring Gas flow stability is essential for accurate electrochemical and thermal conductivity readings. The unit features automatic flow regulation, where the system adjusts the internal valves based on preset parameters. Furthermore, the inlet pressure detection function provides real-time alerts if the pressure is abnormal, protecting the internal sensors from damage and ensuring the validity of the sample.

C. National Standard Diagnostic Logic Technicians no longer need to carry manual look-up tables. The analyzer automatically compares measurement results against national standards (such as State Grid or China Southern Grid templates). It provides an automatic diagnosis of the results and suggests corresponding adjustment measures or maintenance actions immediately on-screen.

3. Technical Specifications: Laboratory Precision in a Portable Frame

The low power consumption SF6 gas analyzer for field work utilizes a multi-sensor array to provide a 360-degree view of gas health.

SF6 Purity Detection Principle: Thermal Conductivity Range: 0 to 100% (Volume Ratio) Maximum Error: ±0.5%

Humidity (Dew Point) Detection Principle: Resistive-Capacitive Range: -60 to +20 degrees Celsius Maximum Error: ±2 degrees Celsius

Sulfur Dioxide (SO2) Detection Principle: Electrochemical Range: 0 to 100 microliters per liter Maximum Error: 0.5 microliters per liter (for low range)

Hydrogen Sulfide (H2S) Detection Principle: Electrochemical Range: 0 to 100 microliters per liter Maximum Error: 0.5 microliters per liter (for low range)

Carbon Monoxide (CO) Detection Principle: Electrochemical Range: 0 to 500 microliters per liter Maximum Error: ±2 microliters per liter (for low range)

4. Why Low Power Consumption Matters for Field Work

Field work often involves long days in remote locations where access to power is limited. A low power consumption SF6 gas analyzer for field work offers several strategic advantages:

1. Extended Duty Cycles: High-efficiency microcontrollers and low-draw displays allow for a full day of testing on a single charge.

2. Reduced Thermal Drift: Lower power consumption means less internal heat generation. In sensitive electrochemical sensors, internal heat can cause baseline drift; by keeping the unit cool, the analyzer maintains higher accuracy over long measurement sessions.

3. Sustainability: Optimized battery usage reduces the frequency of battery replacements and environmental impact, aligning with green utility initiatives.

5. Streamlined Data Management and Big Data Integration

In the era of the Smart Grid, data is the most valuable asset. This analyzer is built for the Big Data ecosystem:

Customizable Data Upload: Data can be uploaded to cloud platforms or local servers based on specific client requirements, providing the raw material for predictive maintenance analytics. One-Click Export: Measurement data can be exported using standardized templates (State Grid/Southern Grid), significantly reducing the time required for report generation. Active Measurement Modes: The device supports both automatic and manual modes. In automatic mode, the analyzer terminates the measurement and alerts the operator once a stable reading is achieved, conserving both gas and battery life.

6. Applications Across Vital Industries

While primarily designed for the power sector, the versatility of the low power consumption SF6 gas analyzer for field work makes it indispensable across multiple sectors:

Power Utilities: Routine GIS and circuit breaker health checks. Railway Systems: Ensuring the reliability of traction power supply equipment. Petrochemicals: Monitoring electrical switchgear in hazardous or high-corrosion environments. Manufacturing: Quality control for manufacturers of SF6-filled electrical components.

Conclusion: Setting the Standard for Field Gas Analysis

The low power consumption SF6 gas analyzer for field work is more than a measurement device; it is a comprehensive field laboratory. By combining the precision of thermal conductivity and electrochemical sensing with the intelligence of automated flow control and standardized diagnostics, it empowers technicians to make critical maintenance decisions with absolute confidence.

As the industry moves toward more data-driven maintenance strategies, owning a tool that bridges the gap between field reality and digital analysis is essential. This SF6 analyzer ensures that your SF6 infrastructure remains safe, compliant, and efficient—wherever the field takes you.
