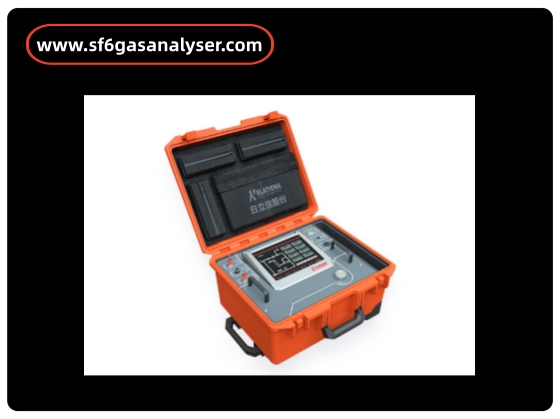

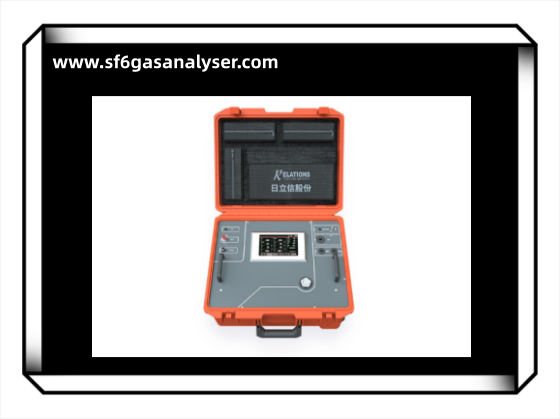

The integrity of high-voltage assets depends entirely on the quality of insulating gas. For power engineers in India, the SF6 electrical insulation status comprehensive analyzer price in India is a critical consideration when balancing operational safety with maintenance budgets. This guide explores how the RA-912FBN Portable Hybrid Insulating Gas Comprehensive Analyzer serves as the gold standard for substation reliability.
An SF6 electrical insulation status comprehensive analyzer is an integrated diagnostic instrument designed to evaluate the chemical and physical health of Sulfur Hexafluoride gas within Gas Insulated Switchgear (GIS) and circuit breakers. Rather than using multiple tools, this hybrid system measures purity, moisture (dew point), and toxic decomposition products (SO2, H2S, CO) in a single testing cycle.
The RA-912FBN utilizes a multi-sensor array to provide a 360-degree view of gas health:
Infrared Absorption (NDIR): Measures SF6 purity by analyzing the specific infrared light absorption of SF6 molecules, ensuring high accuracy regardless of the background gas.
Chilled Mirror or Polymer Sensing: Tracks the water vapor content (dew point) to prevent internal flashovers.
Electrochemical Analysis: Detects trace amounts of SO2 and H2S, which are clear indicators of internal arcing or insulation degradation.
The SF6 electrical insulation status comprehensive analyzer is engineered to meet stringent international protocols such as IEC 60376 (for new gas) and IEC 60480 (for used gas).
| Feature | Technical Specification | Benefit for Users |
| Measurement Range | 0~100% (Purity), -60~+20°C (Dew Point) | Full-spectrum gas diagnostics. |
| Decomposition Accuracy | ±0.1 ppm (SO2/H2S) | Early detection of equipment failure. |
| Gas Recovery | Internal Circulation System | Zero-emissions testing; eco-friendly. |
| Data Export | USB + On-board Thermal Printer | Instant reporting for compliance audits. |
| Battery Life | >8 Hours Lithium Battery | Reliable for remote rural substations. |
In the Indian power sector, engineers face unique challenges such as extreme humidity and aging infrastructure. The RA-912FBN addresses these through specific application scenarios:
Routine GIS Maintenance: Prevent costly outages by monitoring moisture levels that lead to corrosive acid formation.
Post-Fault Forensic Analysis: If a breaker trips, use the SF6 decomposition product gas detector function to identify if a high-energy arc occurred.
Commissioning New Assets: Verify that contractors have filled equipment with high-purity gas before energization.
Environmental Compliance: Use the zero-leakage recovery system to meet “Green Grid” initiatives and reduce the carbon footprint of your utility.
Q: Does the SF6 electrical insulation status comprehensive analyzer price in India include calibration?
A: Most professional quotes for the RA-912FBN include an initial NABL-traceable calibration certificate. For updated pricing or to discuss AMC (Annual Maintenance Contracts), please email sale@sf6gasanalyser.com.
Q: Can this device handle high-pressure SF6 sampling?
A: Yes, the RA-912FBN features a built-in pressure-reducing valve and electronic flow control to safely handle gas from high-voltage equipment.
Q: How do I integrate this data into our Digital Substation (Industry 4.0) workflow?
A: The device supports digital data export. Our technical team can provide integration support for uploading test results to your Asset Management Software.
Investing in the right technology ensures the longevity of your HV assets. For a formal quotation regarding the SF6 electrical insulation status comprehensive analyzer price in India, or for specific technical inquiries regarding SF6 gas quality testing standards, contact our expert team directly.
